网络协议头
目录
Table of Contents
From: https://nmap.org/book/tcpip-ref.html
1 IP header

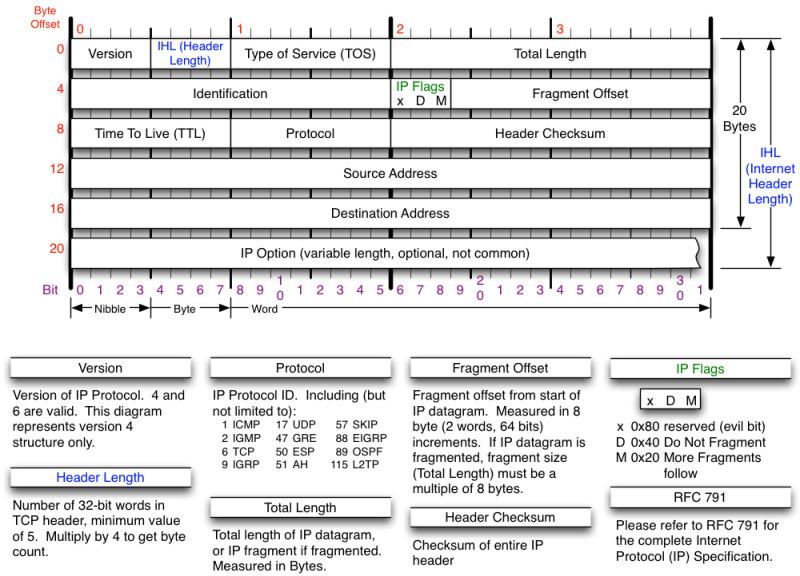

Figure 1: ip header
2 TCP header

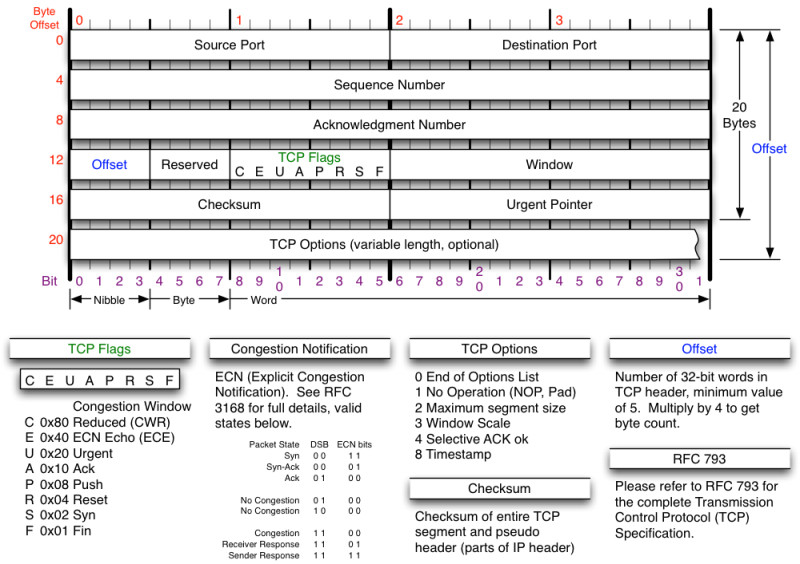

Figure 2: tcp header
3 UDP header

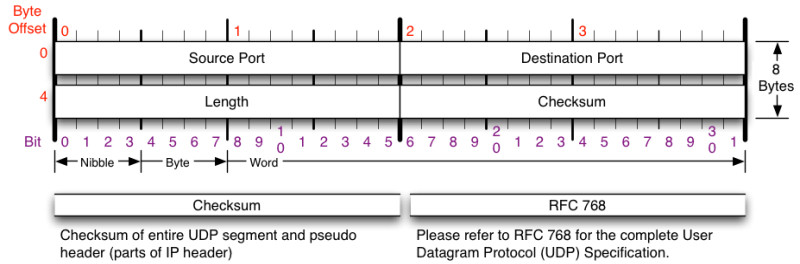

Figure 3: udp header
4 ICMP header

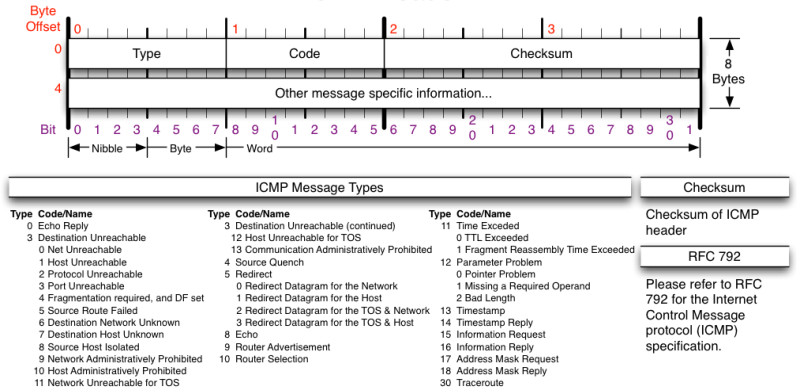

Figure 4: icmp header
目录
From: https://nmap.org/book/tcpip-ref.html
Figure 1: ip header
Figure 2: tcp header
Figure 3: udp header
Figure 4: icmp header
